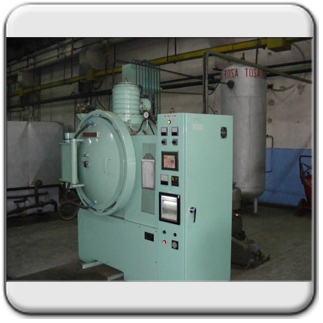

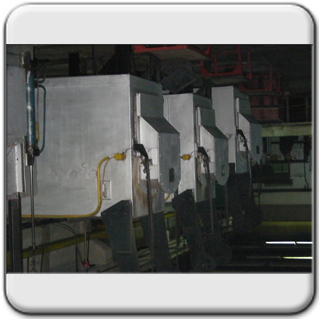

HEAT TREATMENT


PRIMARY and SECUNDARY TREATMENT, THERMOCHEMICAL TREATMENT
PRIMARY TREATMENT	DIMENSION RANGE
ANNEALING	550 X 1100 X 900 mm
STRESS -RELIEVING ANNEALING	550 X 1100 X 900 mm
SECUNDARY TREATMENT
HARDENING	DIMENSION RANGE
with vacuum atmosphere	250 x 350 mm
in salt bath	350 x 750 mm
in electric furnaces	850 x 900 x 1100 mm
TEMPERING	DIMENSION RANGE
isotherm	450 x 450 mm
electric tempering	850 x 900 x 1100 mm
HEAT AGEING	DIMENSION RANGE
gas carburizing	450 x 1300 mm
solid elements carburizing	500 x 500 x 1500 mm

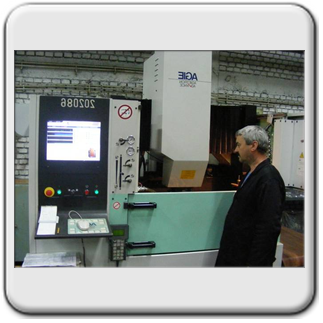

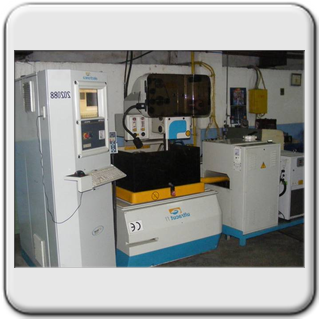

ELECTRODISCHARGING

Electrodischarged machine (EDM Wire Erosion) has an exceptional capability to machine exotic materials (Superalloys, titanium, tungsten carbide, aluminium alloys, copper, etc.).Because hardened materials can be wire cut, EDM Wire Erosion eliminates the need for post-machining heat-treating that can cause possible part distortion

Because the absence of machining forces, EDM Wire Erosion is capable of holding tight tolerances to ± 5 microns

EDM produced work pieces are accurate and burr-free, with excellent surface finish; ready for immediate use as finished parts.Highly complex, contoured shapes can be produced, freeing designers to configure their requirements, in a single piece rather than several component parts.


ELECTRODISCHARGE OPERATION
TYPE	DIMENSION RANGE
with wire	600 x 780 x 200 mm
computer controlled EDM	760 x 450 x 250 mm
EDM with electrod	250 x 500 x 200 mm
Boring	max diameter of bore 2 mm

PLASTIC INJECTION

In addition to our injection moulding solutions, which are precisely tailored to your requirements, we offer detailed application technology consulting: Our experts know the requirements of the various sectors down to the last detail, and provide targeted assistance in selecting and configuring your injection parts.

TITAN COATING

The DREVA 400 is a small capacity batch coating unit for plasma reactive deposition of functional coatings.The plant offers an excellent standard of modern coating technologies for cutting and punching, forming as well as injection molding tools consisting of tool steel respectively tungsten carbides. Even decorative coating jobs can be completed.
